FOTON
Tunland V9
DISCOVER THE TUNLAN V9
Tunland V9
Download the product catalog.
2.0L
AUCAN Turbo Diesel
120
kW
450
Nm
8-Speed
Automatic

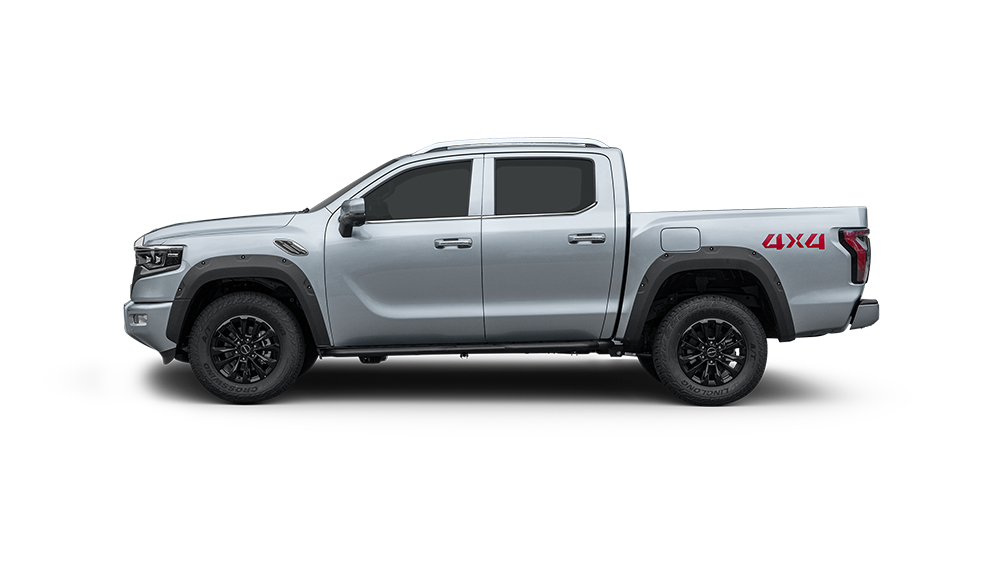

PRODUCT 360°
Drag to rotate

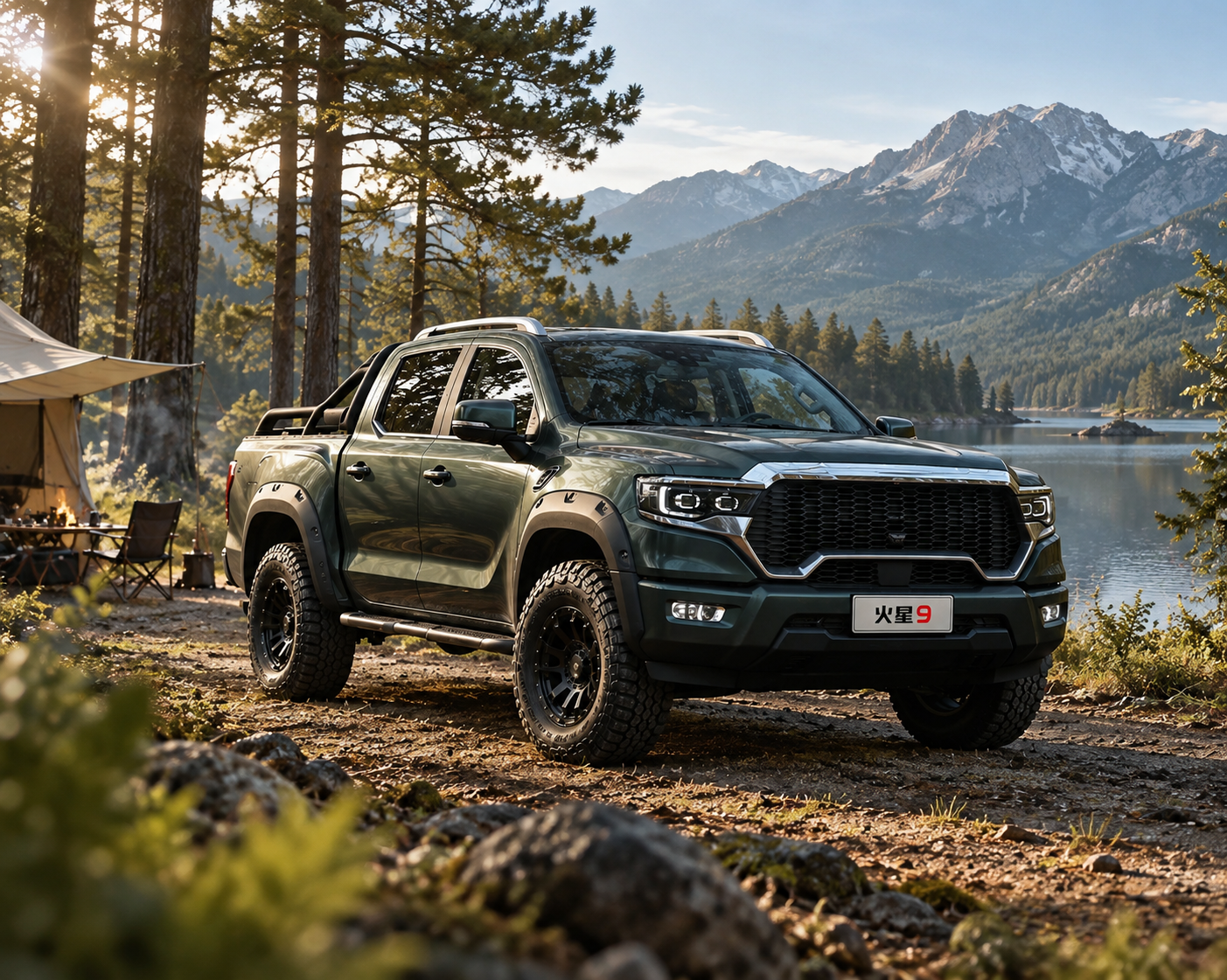

PERFORMANCE
CONQUER EVERY CHALLENGE
AUCAN 2.0L diesel engine delivers 120 kW of power and 450 Nm of torque, combining strong performance with efficient power delivery.
Power & Torque
AUCAN 2.0L diesel engine delivers 120 kW of power and 450 Nm of torque, combining strong performance with efficient power delivery.
48V Diesel Hybrid
FOTON’s first diesel 48V hybrid pickup uses electric assistance according to torque demand during starting, acceleration and climbing for improved efficiency and driving performance.
7 Driving Modes
Seven drive modes — Mud, Sand, Snow, Sport, Standard, Economy and 2H — provide adaptable performance across different driving conditions and terrains.
COMFORT
The cabin knows you.
14.6” HD Floating Screen +Voice-Activated System
Nappa-Like Leather-Wrapped Steering Wheel
Spacious andErgonomic Interior
Panoramic Sunroof

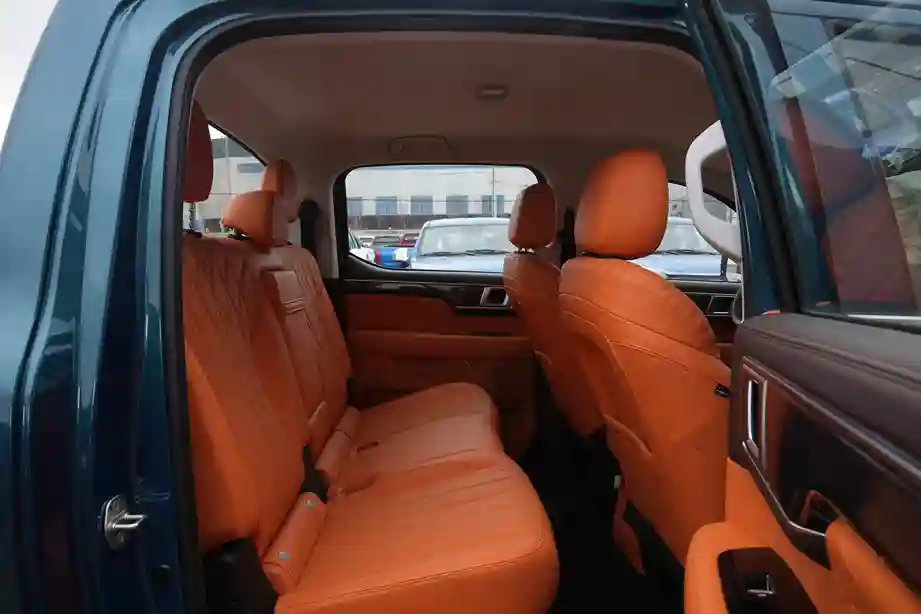

Premium Upholstery withSpacious Rear Seating
Dual-Zone Automatic Air Conditioning
LIVE YOUR LIFE AS A STORY
1 / 4

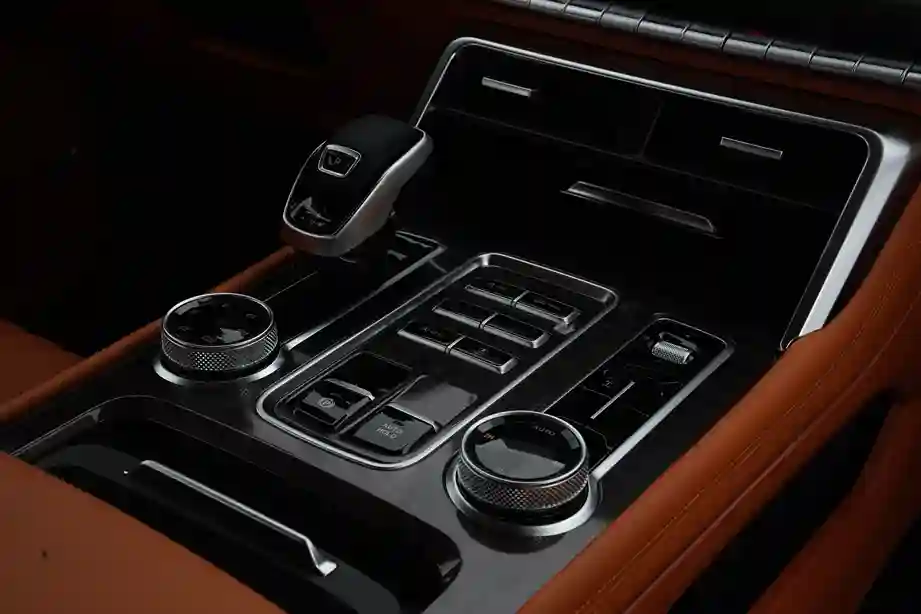

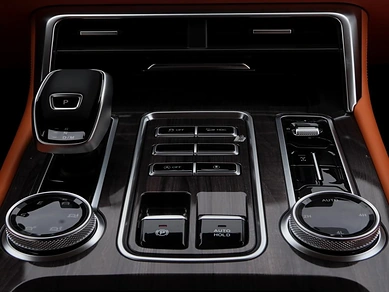

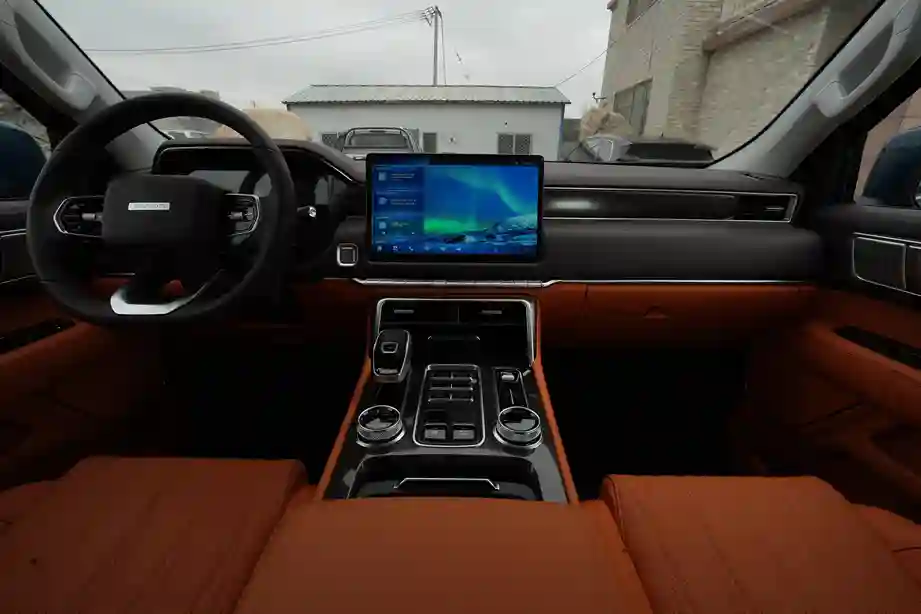

Smart Center Console
A thoughtfully designed center console combines intuitive controls, multiple storage spaces and 15W wireless charging for everyday convenience.

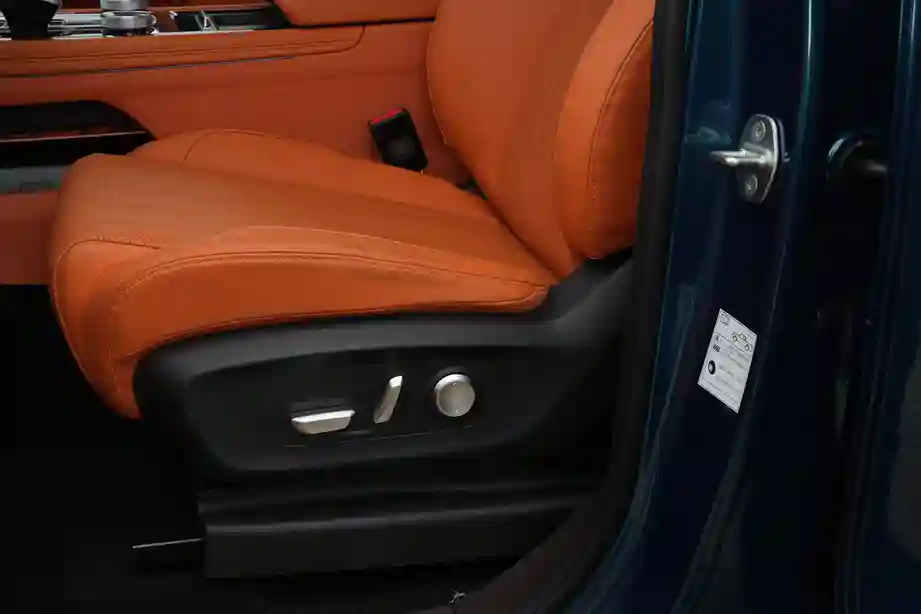

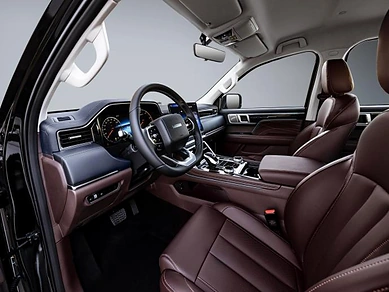

Ergonomic Seats
Premium synthetic leather seats feature 6-way electric adjustment, 4-way lumbar support, memory, ventilation and heating for enhanced comfort.

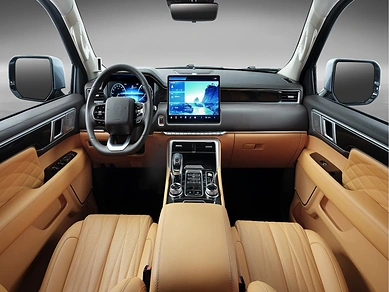

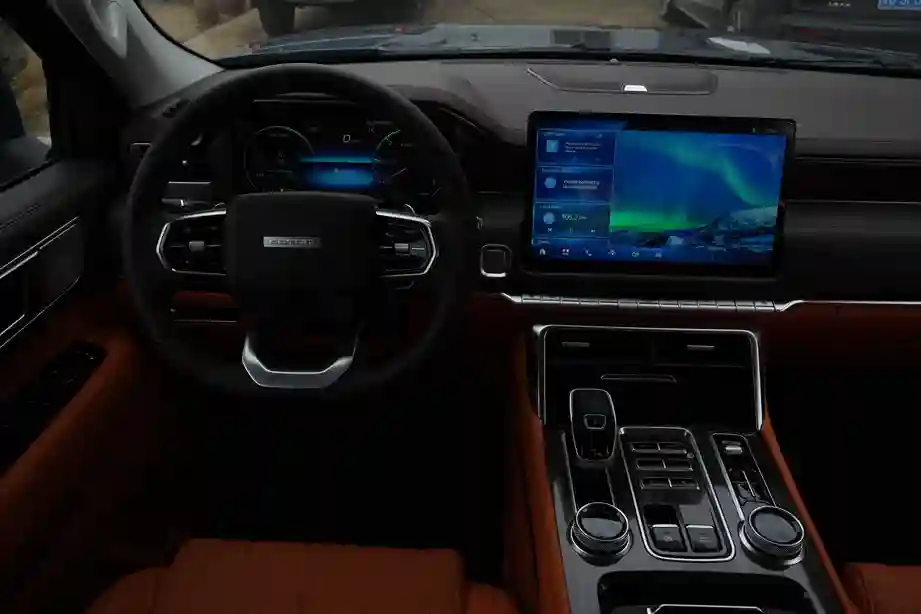

Steering Wheel and Smart Display
A Nappa-like leather steering wheel and 14.6-inch 2K central display create a refined, connected cockpit with voice control and intuitive interaction.

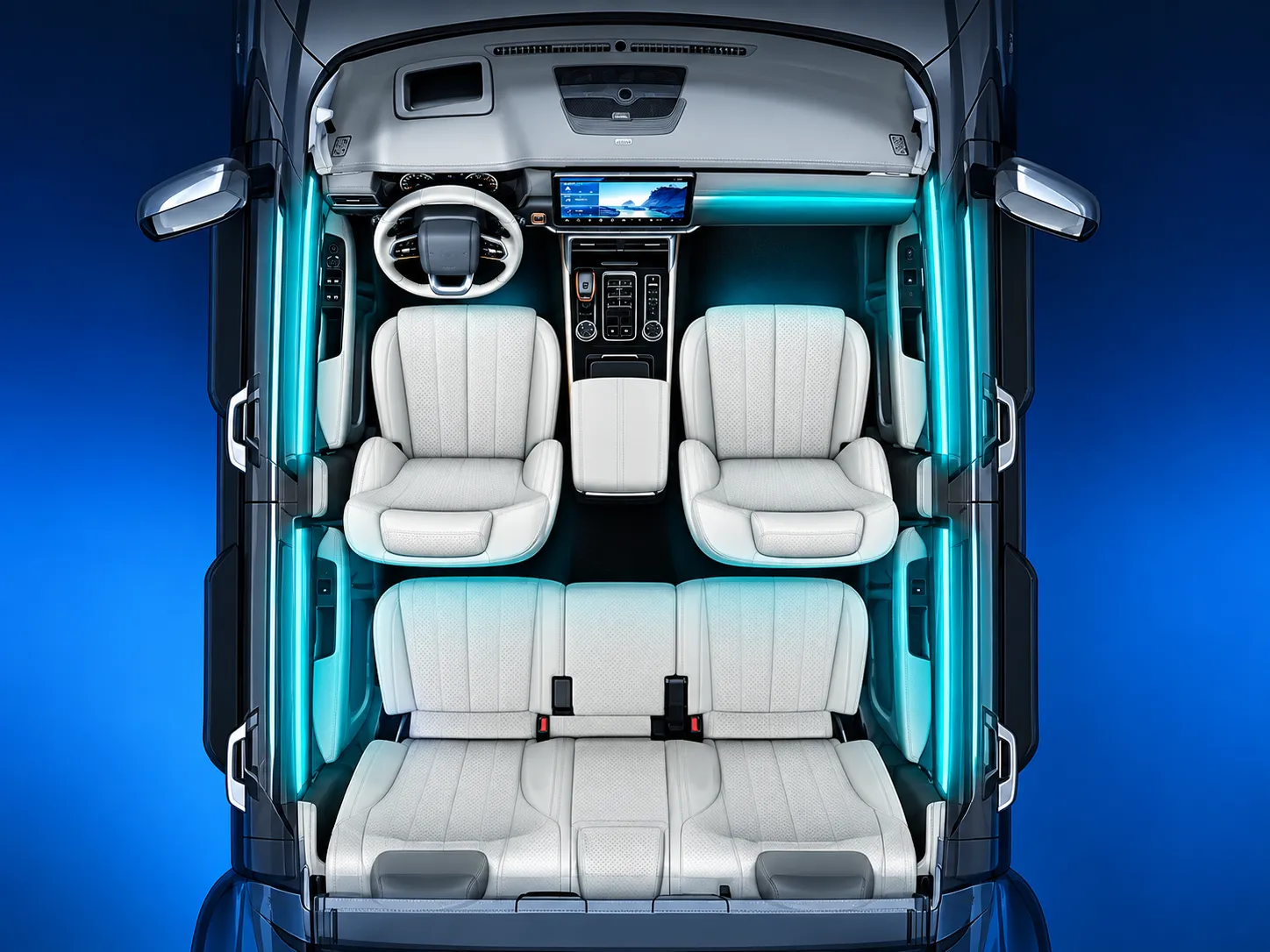

Ambient Lighting
256-color gradient LED ambient lighting offers breathing and music-synchronized modes, creating a personalized atmosphere inside the cabin.
1 / 4

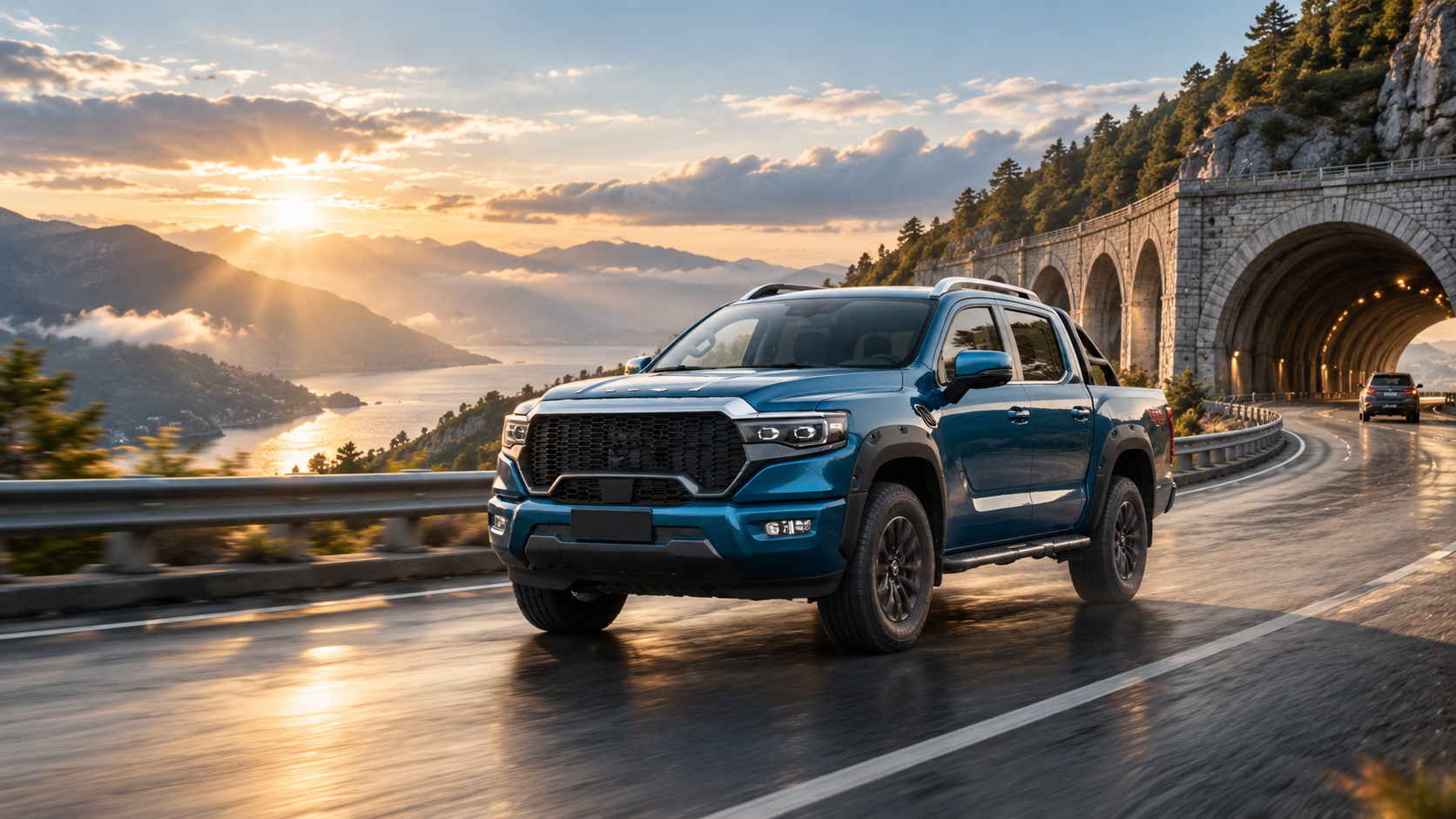

SAFETY
INTELLIGENT SAFETY FOR EVERY JOURNEY
Advanced Driver Assistance
TUNLAND V9 features L2.5 intelligent driving assistance, including AEB, Advanced ACC, TSR, TJA, FCW, LDW, LCC, LCA, BSD, DOW, RTCA and DMS for enhanced driving awareness and safety.
High-Strength Safety Structure
The high-strength hot-formed steel body and high-strength ladder frame provide enhanced structural strength and occupant protection in the event of a collision.
Six Airbags & Pre-Tensioned Seat Belts
Six airbags, together with front and rear pre-tensioned seat belts with load-limiting design, provide enhanced protection for occupants in the event of a collision.
1 / 1
SPECS
- Engine Type
- AUCAN 2.0L Turbo Diesel
- Displacement
- 2.0 L
- Power
- 120 kW
- Torque
- 450 Nm
- Hybrid System
- 48V Diesel Hybrid
- Gearbox
- 8-Speed Automatic
- Drivetrain
- 4WD
- Emission Standard
- Euro VI-e
- Wheel Size
- 18-inch
- Tyres
- 265/70R18 All-Terrain
- Overall Length
- 5,617 mm
- Overall Width
- 2,090 mm
- Overall Height
- 1,955 mm
- Wheelbase
- 3,355 mm
- Minimum Ground Clearance
- 240 mm
- Approach Angle
- 28°
- Departure Angle
- 26°
- Wading Depth
- 700 mm
- Cargo Box Dimensions
- 1,577 × 1,650 × 530 mm
- Cargo Box Volume
- 1,379 L
- Headlights
- Full LED Matrix Headlights
- Tail Lights
- C-Shaped LED Tail Lights
- Daytime Running Lights
- LED
- Rearview Mirrors
- Widened Exterior Mirrors
- Body Structure
- High-Strength Steel Body
- Frame
- High-Strength Ladder Frame
- Anti-Collision Beams
- 1,500 MPa
- Welcome Lighting
- LED Ground Welcome Lights
- Central Display
- 14.6-inch 2K Display
- Steering Wheel
- Nappa-Like Leather-Wrapped Steering Wheel
- Driver Seat
- 6-Way Electric Adjustment
- Lumbar Support
- 4-Way Electric Lumbar Support
- Seat Memory
- Driver Seat Memory
- Seat Ventilation
- Ventilated Front Seats
- Seat Heating
- Heated Front Seats
- Ambient Lighting
- 256-Color Gradient LED Ambient Lighting
- Sunroof
- Panoramic Sunroof
- Rear Floor
- Flat Rear Floor
- Rear Armrest
- Rear Armrest with Cup Holders
- Infotainment Display
- 14.6-inch HD Floating Screen
- Voice Control
- Voice-Activated System
- Wireless Charging
- 15W Wireless Charging
- USB Ports
- Front and Rear USB Ports
- Power Outlet
- 220V Power Outlet
- Air Conditioning
- Dual-Zone Automatic Air Conditioning
- Rear Air Vents
- Independent Rear Air Vents
- Ambient Lighting
- 256-Color LED Ambient Lighting
- Storage
- Multiple Interior Storage Compartments
- Airbags
- 6
- Body Structure
- High-Strength Hot-Formed Steel Body
- Frame
- High-Strength Ladder Frame
- Seat Belts
- Front and Rear Pre-Tensioned Seat Belts
- Load Limiting
- Load-Limiting Seat Belts
- ABS
- Anti-lock Braking System
- EBD
- Electronic Brakeforce Distribution
- ESP
- Bosch ESP 9.3
- HBA
- Hydraulic Brake Assist
- HBB
- Hydraulic Brake Boost
- HHC
- Hill Hold Control
- HDC
- Hill Descent Control
- Panoramic View
- Panoramic Surround View
- Intelligent Driving
- L2.5 Intelligent Driving Assistance
- Adaptive Cruise Control
- Advanced ACC
- Autonomous Emergency Braking
- AEB
- Forward Collision Warning
- FCW
- Lane Departure Warning
- LDW
- Lane Centering Control
- LCC
- Lane Change Assist
- LCA
- Blind Spot Detection
- BSD
- Traffic Jam Assist
- TJA
- Traffic Sign Recognition
- TSR
- Rear Cross Traffic Alert
- RTCA
- Door Open Warning
- DOW
- Driver Monitoring System
- DMS
- Warranty
- Not specified in the available TUNLAND V9 sources
