Cavan C1 MAX

ONE MILE, ONE SMILE

RANGE300 MILES
POWER200BHP
CHARGING0-70% IN 30 MINS
PAYLOAD1,000 KG
LOAD AREA6.6 M³

INTRODUCING THE ALL NEW ELECTRIC CAVAN

AVAILABLE IN 3 MODELS

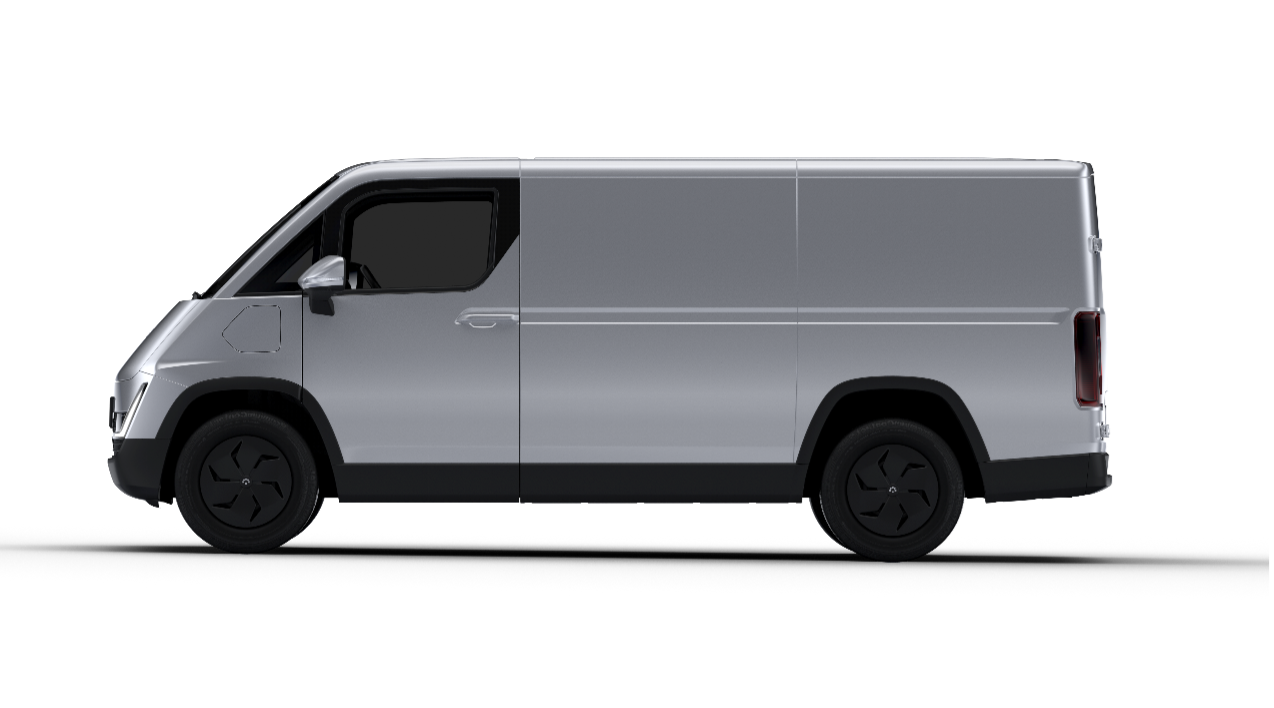

  • CAVAN C1 Max

    CAVAN C1 Max electric van, front three-quarter view
    WHEELBASE
    3400 mm
    RANGE
    260km(Battery capacity 50.23kWh)
    RATED/PEAK POWER
    55 kW/125 kW
    PAYLOAD
    1005KG
    LOAD AREA
    6.6m3
    Download Brochure

  • CAVAN C1+

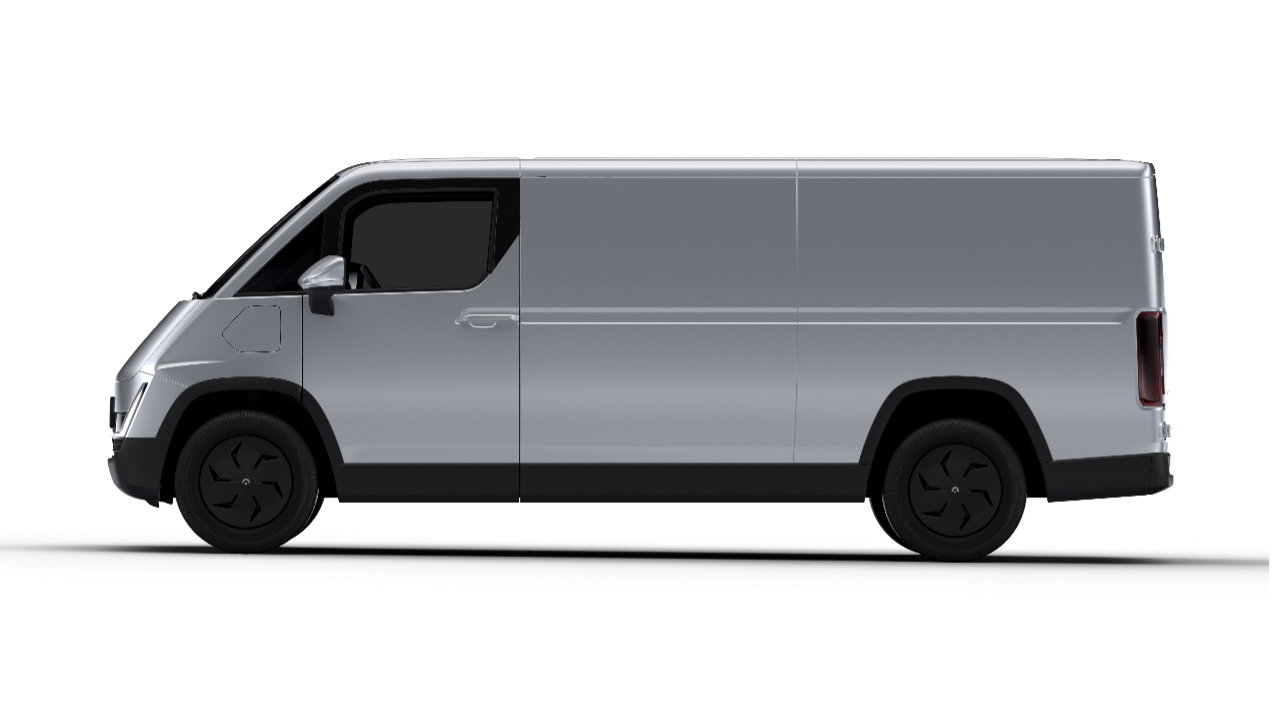

    CAVAN C1+ electric van, front three-quarter view
    WHEELBASE
    3400 mm
    RANGE
    250/320 Km (50.23/66.67kWh)
    RATED/PEAK POWER
    55 kW/125 kW
    PAYLOAD
    1200KG
    LOAD AREA
    7.4m3
    Download Brochure

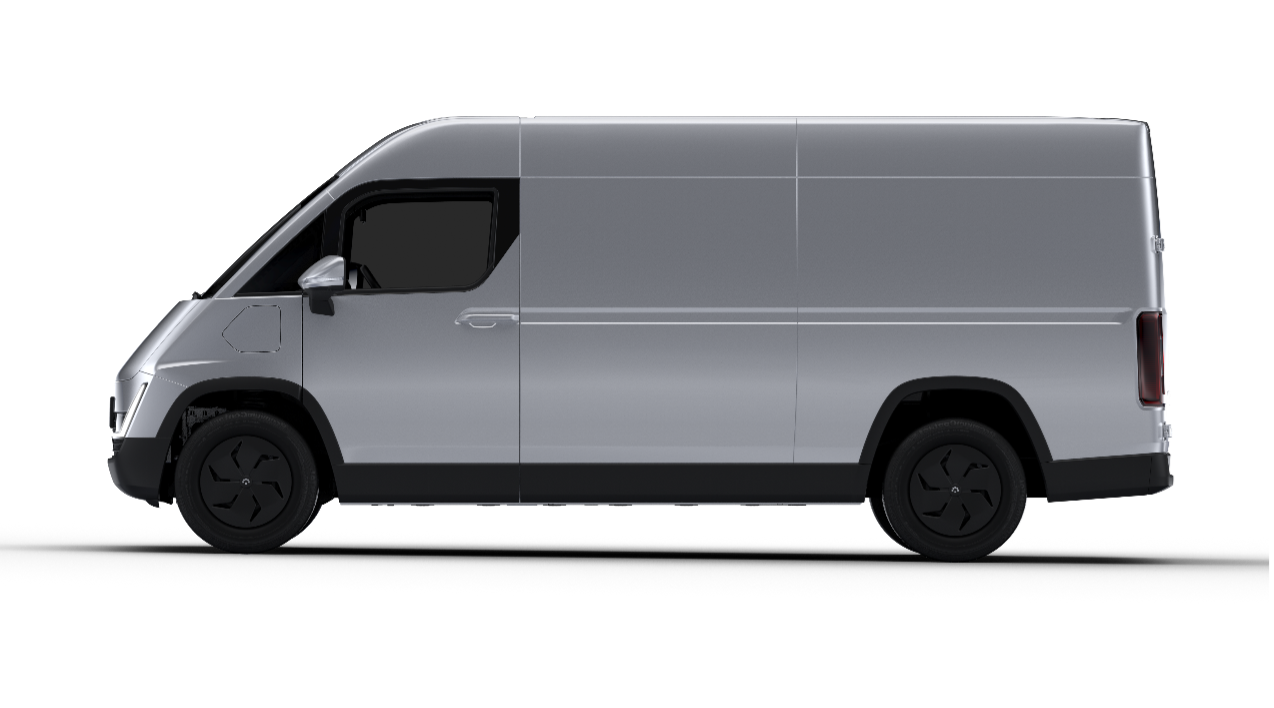

  • CAVAN C1+ Highroof

    CAVAN C1+ Highroof electric van, front three-quarter view
    WHEELBASE
    3400 mm
    RANGE
    240/310 Km (50.23/66.67kWh)
    RATED/PEAK POWER
    55 kW/125 kW
    PAYLOAD
    1200KG
    LOAD AREA
    8.4m3
    Download Brochure
Cavan C1 electric van in motion

THE EVTHAT MAKES IT EZ

6.6m³, 7.4m³, or 8.4m³
Container Volume Options
Side Door1100×1240mm
Wide Loading Apertures
Rear Door Opening Height1400×1320/1485mm**
Electricity Consumption/WLTC Working Conditions (Wh/km)204-225***

LIVE YOUR LIFE AS A STORY

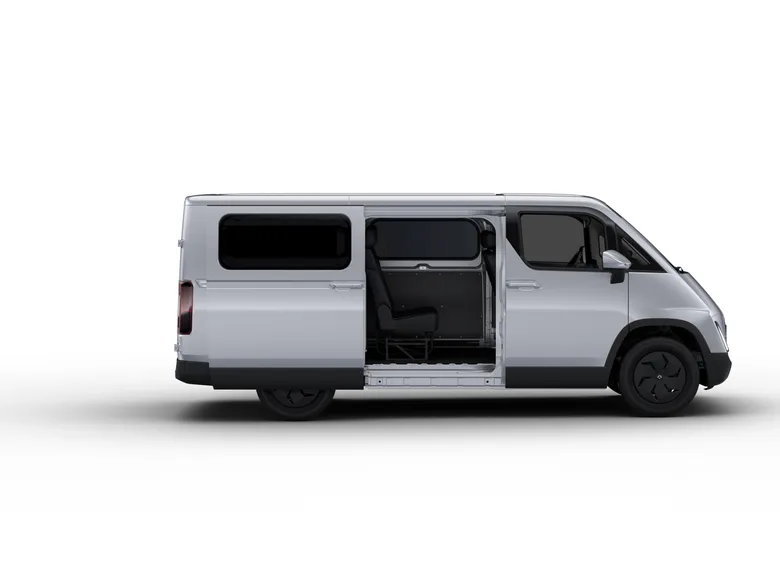

Cavan C1 SLIDING PANEL DOORS

SLIDING PANEL DOORS

Exquisite electronic handle design, and more than 15 storage places in the cab.

Cavan C1 SLIDING PANEL DOORS

SLIDING PANEL DOORS

Bionic seat, H-shaped skeleton, shoulder support design, electric adjustment, imitation first layer cowhide material, good air permeability, fast heating.

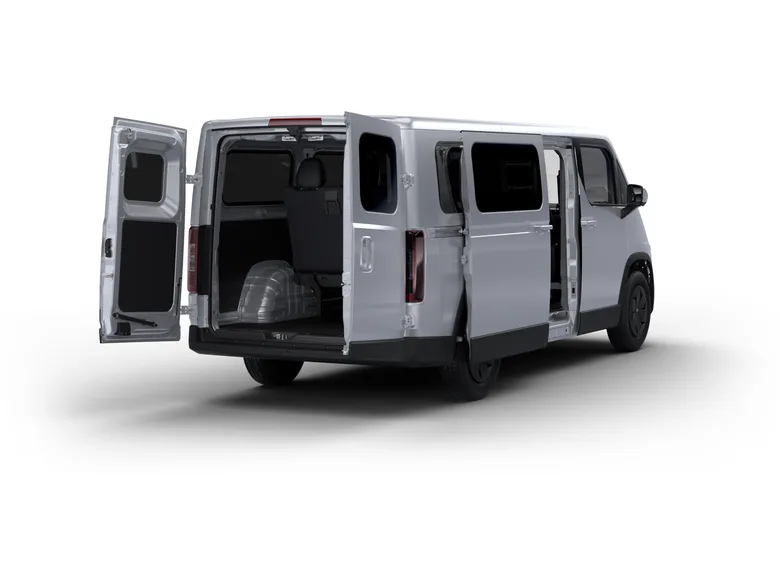

Cavan C1 WINDOW OPTION

WINDOW OPTION

Sports steering wheel, 4-way adjustment. 8-inch digital LCD instrument, 10.25-inch large high-definition floating central control screen, multi-touch.

Cavan C1 SLIDING PANEL DOORS

SLIDING PANEL DOORS

Exquisite leather covering, three-dimensional layered instrument panel, aviation-grade cockpit.

1 / 4

COMFORT

8’’ Digital Liquid Crystal Meter10.25’’ HD Central Control Screen + Multi-touch

Sport Steering Wheel, light steering

15 storage spaces3 USB

Colorful change atmosphere lamp

“H” Frame Bionic Electrically Adjustable Seat

AC + PM2.5 Air Filtration System

LIVE YOUR LIFE AS A STORY

{model} centre console with the electronic gear handle

SLIDING PANEL DOORS

Exquisite electronic handle design, and more than 15 storage places in the cab.

{model} dashboard and steering wheel seen from the passenger side

SEATS

Bionic seat, H-shaped skeleton, shoulder support design, electric adjustment.

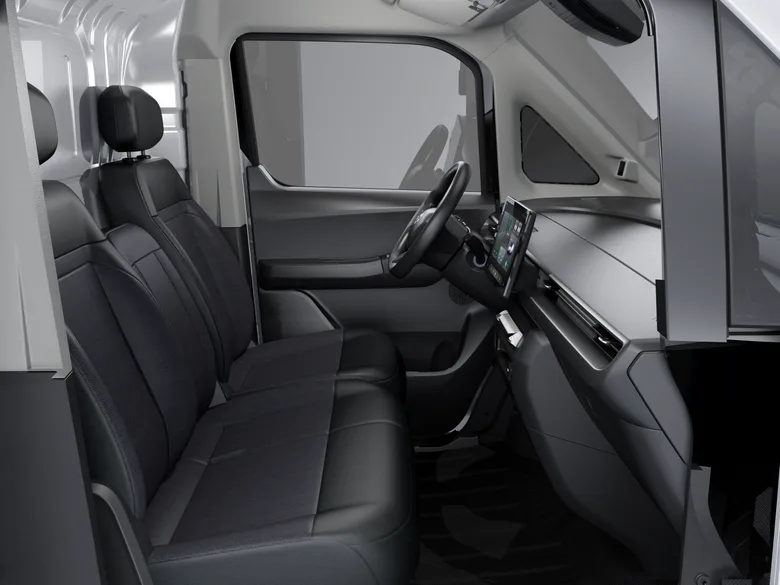

{model} front seats and centre console at dusk

STEERING WHEEL

Sports steering wheel, 4-way adjustment. 8-inch digital LCD instrument.

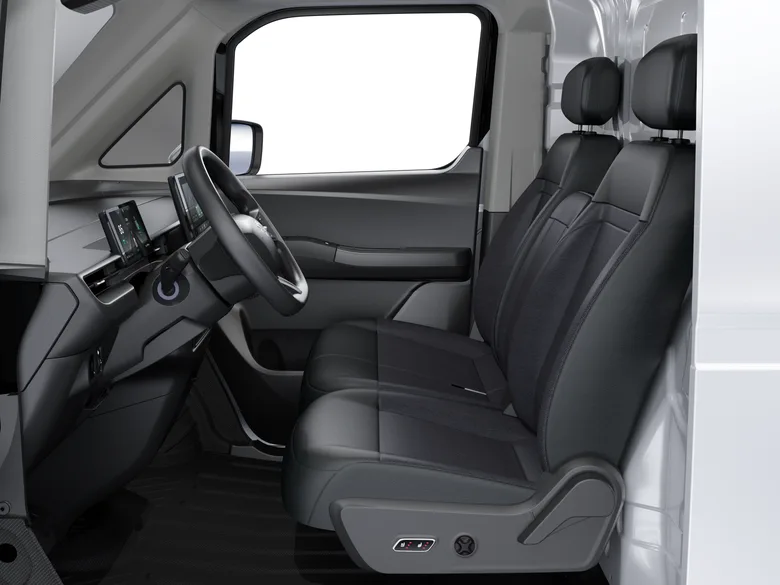

{model} rear cabin seats and leather trim

DASHBOARD

Exquisite leather covering, three-dimensional layered instrument panel.

1 / 4

REGISTER YOUR INTEREST

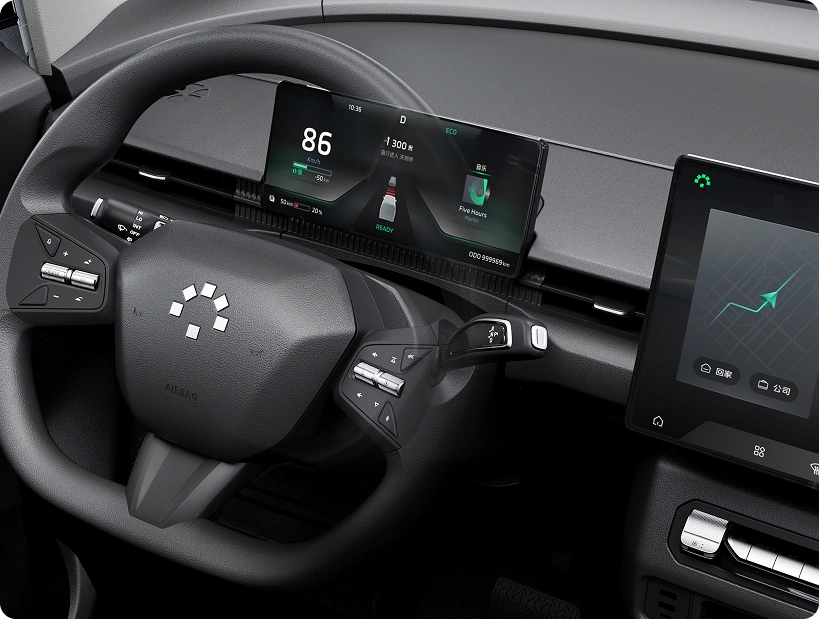

Cavan C1 cockpit — steering wheel and digital instrument cluster

1 / 1

FIND YOURSELF IN PLACES WHERE NO ONE ELSE CAN

6 Airbags + Pre-tensioned seat belt

Dual airbags + side airbags + side curtain airbags, with pre-tensioned seat belts.

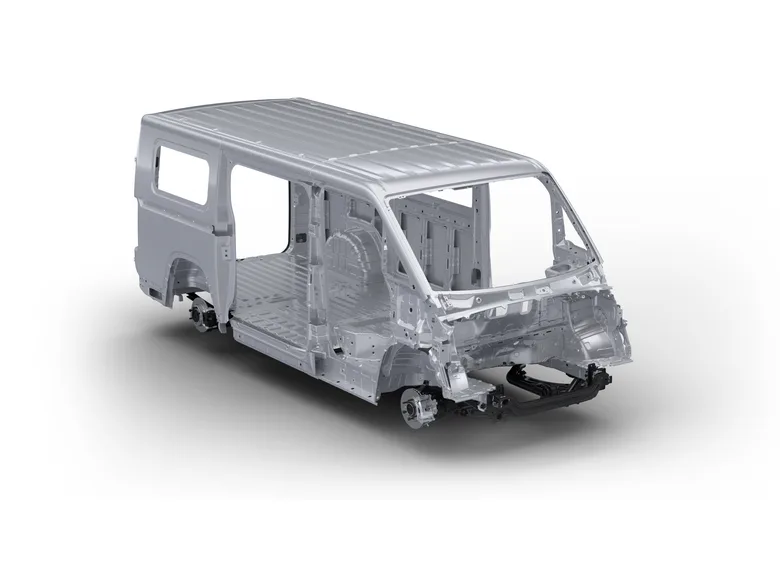

Reinforced body

High-strength steel body, lightweight and energy-absorption design.

HBB

The braking system adds the Hydraulic Brake Boost (HBB) function.

Cavan C1 driving on a mountain highway at dawn

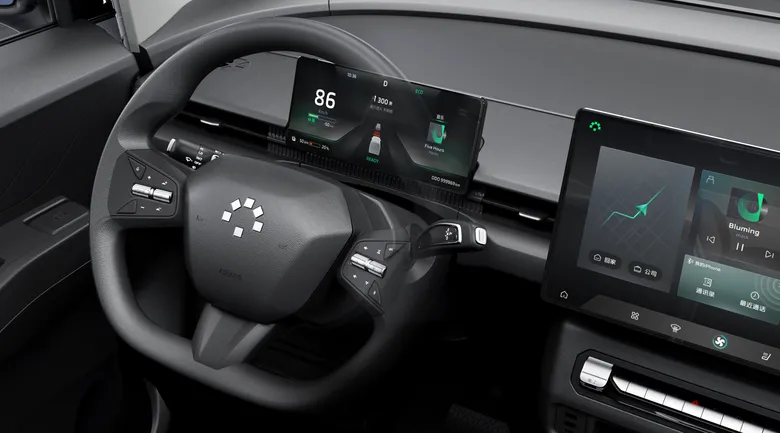

Cavan C1 cockpit and central control screen
Silver Cavan C1 on a winding coastal road
White Cavan C1 parked beside a still lake

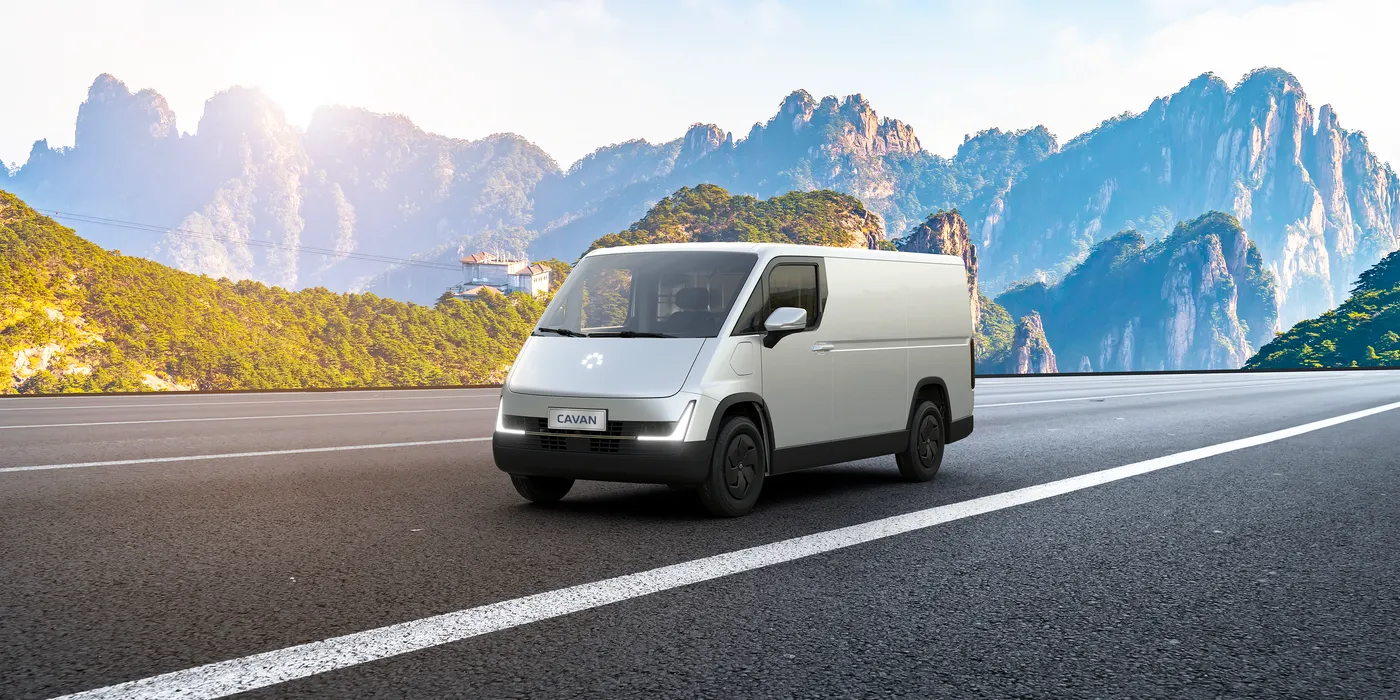

Cavan C1 on a mountain pass road
White Cavan C1 seen from above on desert sand

SPECS

Vehicle TypeC1C1 PLUSC1 MAX
Basic parameters
Vehicle parametersVehicle dimensions (mm)
4885×1810×1960
5185×1810×1960
5185×1810×2160vv
Seating capacity in the cabin (person)
3
3
3
Rated load (kg)
1000
1200
1200
Curb weight (kg)
1670
17001810
17001810
Maximum speed(km/h)
120
120
120
Wheelbase (mm)
3100
3400
3400
Front and rear suspension (mm)
685/1100
685/1100
685/1100
Turning diameter (mm)
11500
12600
12600
Cargo box dimension and volumeCargo dimensions (mm)
2800×1670×1420
3100×1670×1420
3100×1670×1620
Cargo box volume (m3)
6.6
7.4
8.4
Other parametersSide sliding door opening width x height (mm)
1100×1240
1100×1240
1100×1240
Liftgate opening width x height (mm)
1400×1320
1400×1320
1400×1320
Wheel track (mm)
1250
1250
1250
Cargo bed height (mm)
500
500
500
Vehicle width with rear view mirror (mm)
2245
2245
2245
Battery and motor
Battery and motorBattery capacity(kWh)
50.23
50.2366.67
50.2366.67
Driving mileage/WLTC Working conditions (km)
260
250320
250320
Rated power/Peak power（kw）
55/125
55/125
55/125
Rated torque/Peak torque（Nm）
105/210
105/210
105/210
Basic configurations
ChassisMcpherson independent front suspension
●
●
●
Leaf spring suspension axle
●
●
●
Front and rear disc brake
●
●
●
Electronic parking & automatic hold
●
●
●
EHB electronic hydraulic braking support
●
●
●
Pinion EPS
●
●
●
Multi-functional steering wheel with airbag+heating
●
●
●
Four-direction adjustable energy-absorbing steering column
●
●
●
Tire pressure monitoring (direct, with digital display)
●
●
●
16-inch steel wheel
●
●
●
195/75R16LT
●
●
●
Vehicle bodyPassenger seat-side sliding door
●
●
●
Driver sear 4-direction adjustable fabric shock-absorbing seat+heating lumbar support
●
●
●
Pre-crash seat belt
●
●
●
Magic partition
●
●
●
Cargo box semi-wrapped inner trim
●
●
●
Side wall cargo fixing hook
●
●
●
Hand folding+ electronic adjustment electronic heating + BSD light
●
●
●
Passenger seat sun visor
●
●
●

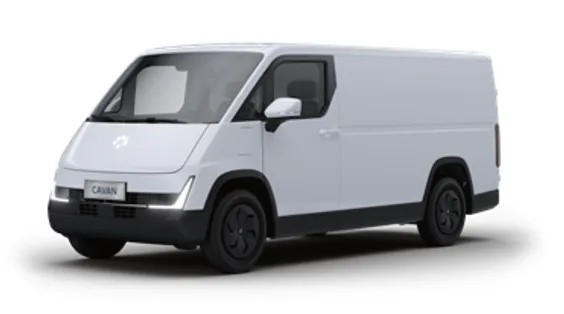

  • Cavan C1 electric van in WhiteWhite
  • Cavan C1 electric van in SilverSilver

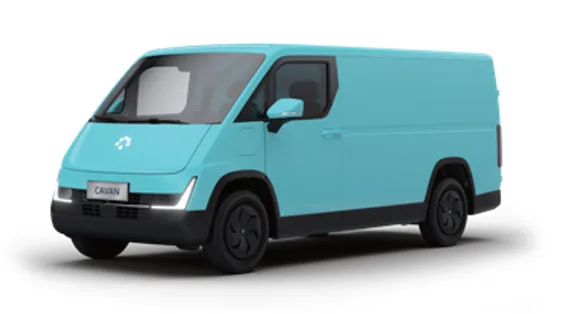

  • Cavan C1 electric van in BlueBlue
  • Cavan C1 electric van in GreenGreen
